Create a Prep protocol

Get labware information

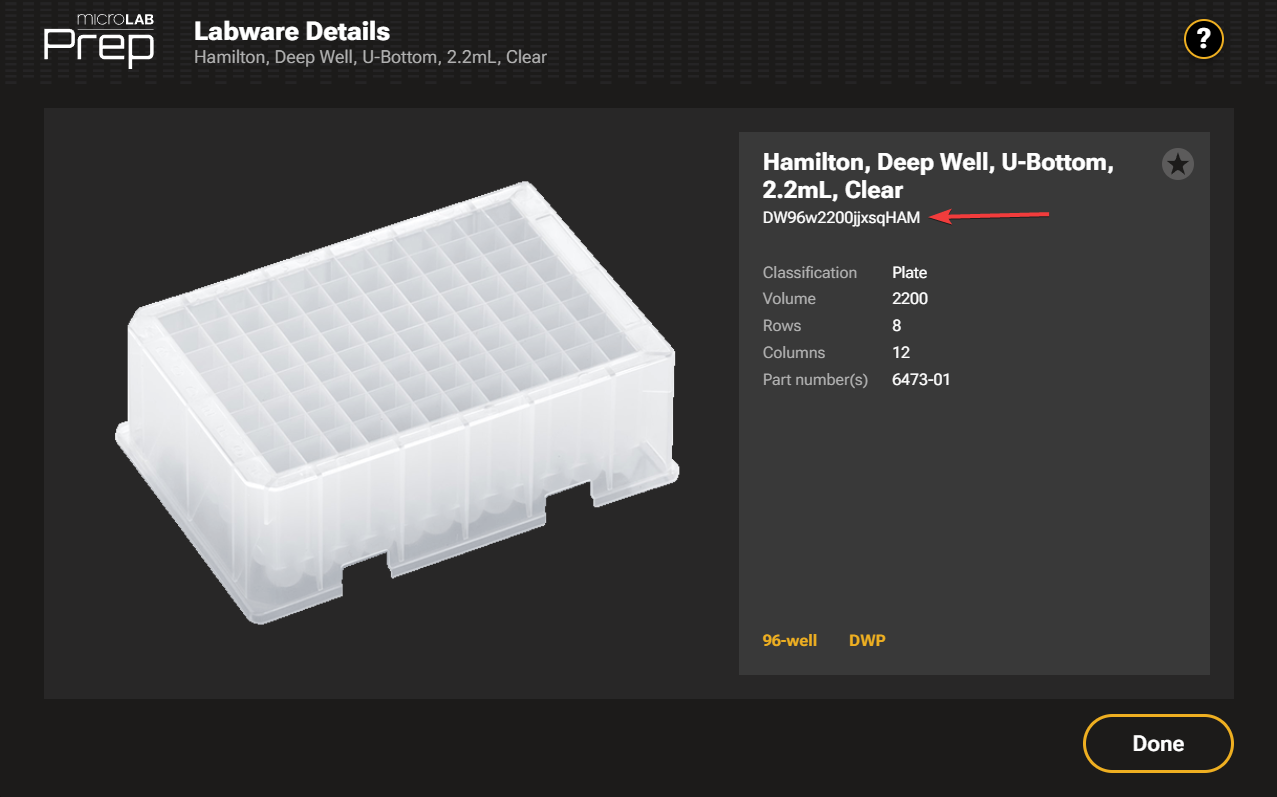

The labware used in a protocol is obtained using the Get method and the labware {name}. The deck information, consisting of the labware information and what positions they occupy on the deck, are passed in the time of creating the protocol. The {name} is displayed in the Labware's Details info card.

labware-name

Get the tips to be used in the protocol

Labware: 300 µL tip rack (Nested Conductive No Filter)

Name: 235950

curl -i -X GET \
  'http://{{your_prep_ip_address}}/api/v1/labware/by-name/{name}' \
  -H 'Authorization: Bearer <YOUR_JWT_HERE>'
Response
application/json
{
  "id": 0,
  "name": "string",
  "containerName": "string",
  "rows": 0,
  "columns": 0,
  "volume": 0.1,
  "displayName": "string",
  "partNumbers": "string",
  "categories": [
    { … }
  ],
  "classification": "string",
  "siteAlignments": [
    "string"
  ],
  "isFavorite": true,
  "parts": [
    { … }
  ]
}

Get the plate to be used in the protocol

This uses the same call as in Get the tips to be used in the protocol, but with different labware:

Labware: Hamilton, Deep Well, U-Bottom, 2.2mL, Clear

Name: DW96w2200jjxsqHAM

curl -i -X GET \
  'http://{{your_prep_ip_address}}/api/v1/labware/by-name/{name}' \
  -H 'Authorization: Bearer <YOUR_JWT_HERE>'
Response
application/json
{
  "id": 0,
  "name": "string",
  "containerName": "string",
  "rows": 0,
  "columns": 0,
  "volume": 0.1,
  "displayName": "string",
  "partNumbers": "string",
  "categories": [
    { … }
  ],
  "classification": "string",
  "siteAlignments": [
    "string"
  ],
  "isFavorite": true,
  "parts": [
    { … }
  ]
}

Create new protocol and pass deck info

Pass everything the protocol needs here.

curl -i -X POST \
  'http://{{your_prep_ip_address}}/api/v1/protocols' \
  -H 'Authorization: Bearer <YOUR_JWT_HERE>' \
  -H 'Content-Type: application/json-patch+json' \
  -d '{
    "id": 0,
    "name": "string",
    "makeNameUnique": true,
    "skipValidation": true,
    "createdByUserName": "string",
    "deck": {
      "id": 0,
      "positions": [
        {
          "position": 0,
          "labwarePositions": [
            {
              "row": 0,
              "column": 0,
              "id": 0,
              "positionName": "string",
              "labwareGroup": {
                "labwareId": 0,
                "id": 0,
                "groupName": "string",
                "reuseTipsBetweenSteps": true,
                "liquidName": "string",
                "liquidType": "string",
                "liquidVolumeOptions": "string"
              },
              "liquidVolume": 0.1
            }
          ],
          "id": 0,
          "positionName": "string",
          "labwareGroup": {
            "labwareId": 0,
            "id": 0,
            "groupName": "string",
            "reuseTipsBetweenSteps": true,
            "liquidName": "string",
            "liquidType": "string",
            "liquidVolumeOptions": "string"
          },
          "liquidVolume": 0.1
        }
      ]
    }
  }'
Response
application/json
{
  "isValid": true,
  "validationErrors": [
    "string"
  ]
}

API call body example

{
  "id": 0,
  "name": "create protocol",
   "makeNameUnique": true,
  "skipValidation": true,
  "createdByUserName": "adminsys",
  "deck": {
     "positions": [       {
        "id": 0,
        "position": 1,
         "positionName": "",
        "liquidVolume": 0
      },
      {
         "id": 0,
        "position": 2,
        "positionName": "Tip Rack",
         "liquidVolume": 0,
        "labwareGroupId": 0,
        "labwareGroup": {
           "groupName": "235950",
          "labwareId": "{{tipId}}",
           "liquidName": "",
          "liquidType": "",
           "reuseTipsBetweenSteps": false
        }       },
      {
         "id": 0,
        "position": 3,
        "positionName": "",
         "liquidVolume": 0
      },
      {
        "id": 0,
         "position": 4,
        "positionName": "",
        "liquidVolume": 0
      },
       {         "id": 0,
        "position": 5,
        "positionName": "",
         "liquidVolume": 0
      },
      {         "id": 0,
         "position": 6,
        "positionName": "Plate",
        "labwareGroupId": 0,
         "liquidVolume": 0,
        "labwareGroup": {
          "id": 0,
           "groupName": "DW96w2200jjxsqHAM",
          "labwareId": "{{hamiltonPlate}}",
           "liquidVolume": "",
          "liquidType": "",
           "reuseTipsBetweenSteps": false
        }       },
      {
         "id": 0,
        "position": 7,
        "positionName": "",
         "liquidVolume": 0
      },
      {         "id": 0,
         "position": 8,
        "positionName": "",
        "liquidVolume": 0
      }
     ]
  } }

Add step to the protocol

Go to Add a Transfer Samples step to an existing protocol to add a step to the newly created protocol.
